Model Number : 1050
Certification : Material Test Certificate
MOQ : 120m
Price : Translation Price
Payment Terms : L/C At Sight,, T/T, Western Union
Supply Ability : 4000Tons/Month
Delivery Time : 10-15 work days
Packaging Details : Kraft Paper+Wooden Pallet+Wooden Box

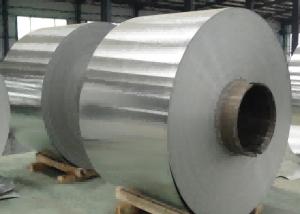

Product Name : Alloy Aluminum Roll 1050 Aluminum Coil
Material : 1050 1050A
Temper : H12 H18 H24 H26 H28
Thickness : 0.15-6.0mm
Processing Service : Punching, Cutting
Alloy Or Not : Non-Alloy
Hardness H12 H18 H24 H26 H28 Alloy Aluminum Roll 1050 Aluminum Coil
Product Description
1050 aluminum sheet belongs to 1000 series aluminum alloy, which has better correction resistance than other alloy series. In the 1050 aluminum sheet, in addition to the component Al, 0.4% Fe is added, so 1050 aluminum alloy also has high conductivity.In general, 1050 aluminum sheet properties exhibit high plasticity, strong corrosion resistance, excellent electrical and thermal conductivity, but the strength of 1050 aluminum sheet is low.
1050 aluminum sheet is non-heat treatment series is produced in extruded sections. It has excellent cold workability, braze-ability and solder-ability, and it is strengthened by cold working. However, 1050 aluminum sheet has low mechanical strength compared to more significantly alloyed metals.
Product Display
Temper | Specifications | Tensile Strength | Yield strength | Elongation |
Thickness(mm) | (MPa) | (MPa) | (%) | |
1050-H12 | 0.2-0.5 | 85-125 | Min 65 | Min 2 |
0.5-1.5 | Min 4 | |||
1.5-3.0 | Min 5 | |||
3.0-6.0 | Min 7 | |||
6.0-12.5 | Min 9 | |||
12.5-40.0 | ||||
1050-H14 | 0.2-1.5 | 105-145 | Min 85 | Min 2 |
1.5-3.0 | Min 4 | |||
3.0-6.0 | Min 5 | |||
6.0-12.5 | Min 6 | |||
12.5-25 | ||||
1050-H16 | 0.2-0.5 | 120-160 | Min 100 | Min 1 |
0.5-1.5 | Min 2 | |||
1.5-4.0 | Min 3 | |||
1050-H18 | 0.2-0.5 | Min 135 | Min 120 | Min 1 |
0.5-1.5 | Min 140 | Min 2 | ||
1.5-3.0 | Min 2 | |||
1050-H19 | 0.2-0.5 | Min 155 | Min 140 | Min 1 |
0.5-1.5 | Min 150 | Min 130 | ||
1.5-3.0 | ||||
1050-H22 | 0.2-0.5 | 85-125 | Min 55 | Min 4 |
0.5-1.5 | Min 5 | |||
1.5-3.0 | Min 6 | |||
3.0-6.0 | Min 11 | |||
6.0-12.5 | Min 12 | |||
0.5-1.5 | ||||
1.5-3.0 | Min 3 |
Application
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines
